AdaFruit USB TTL dongle

From regional-training

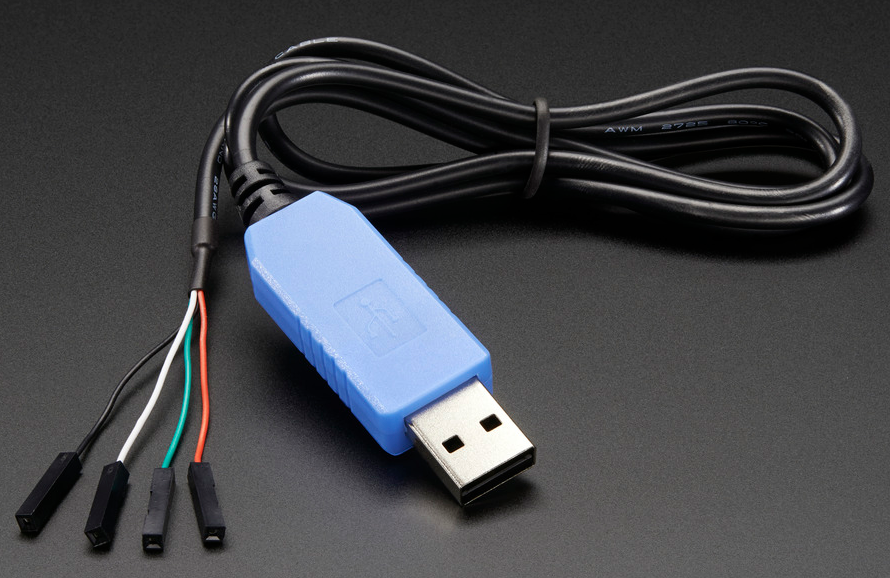

The new adafruit USB TTL dongle uses Silicon Labs CP210x

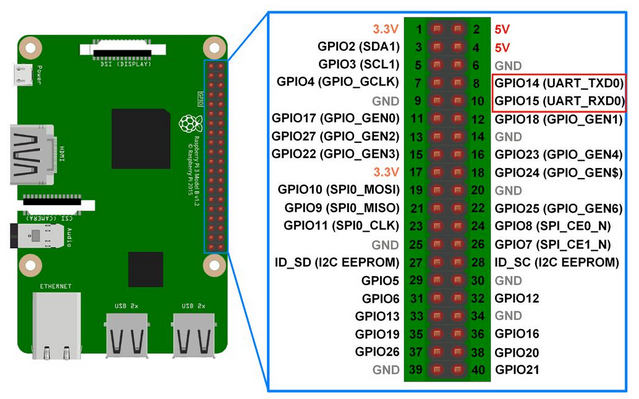

lead	signal	pi GPIO pin	GPIO Name
red	+5 Volt	2	5 Volt
black	Ground	6	GND
white	TxD	8	GPIO14
green	RxD	10	GPIO15

https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers
