Hantek MSO

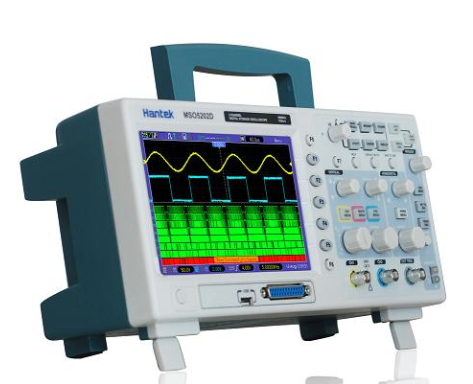

The Hantek MSO5202D is a Multi Signal Oscilloscope (MSO) that has a bandwidth of 200 MHz at 1 Gsps and contains a 16 channel Logic Analyser.

It provides the Windows TTScope software interface allowing data to be saved on a Windows PC. It also has a USB device interface permitting graphs and configuration to be saved to a thumb-drive (but my firmware doesn't seem to work; waiting for Hantek support to get back to me).

There is some hope that a Sigrok driver can be developed.

It has two Arm processors, an FPG and a CPLD and has an internal serial port. It runs Gnu Linux and TinyBox.

The motherboard PCB has been reverse engineered media:hantek-mso-reverse-engineer.pdf.
