RJ45

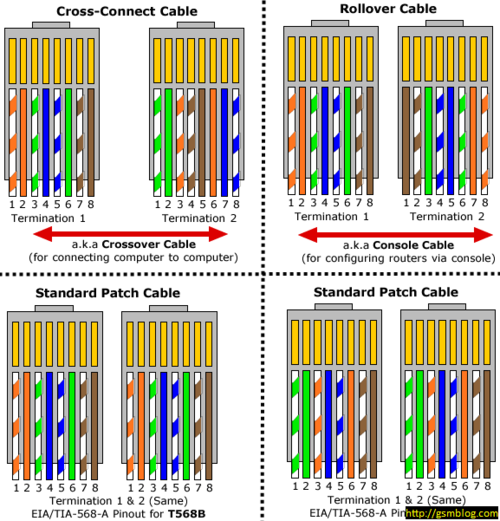

I use the T568B standard for RJ45.
| Pin | T568A | T568B |
|---|---|---|
| 1 | White with green stripe | White with orange stripe |
| 2 | Green | Orange |
| 3 | White with orange stripe | White with green stripe |
| 4 | Blue | Blue |
| 5 | White with blue stripe | White with blue stripe |
| 6 | Orange | Green |
| 7 | White with brown stripe | White with brown stripe |
| 8 | Brown | Brown |
